3D printer power consumption: How much will my electricity bill be?

The 2nd highest expense regarding 3D printer power consumption is electricity, preceded only by the cost of filament. The cost of electricity for your 3D printer varies depending on the printer model, printing time and material used.

For any manufacturing company, it is essential to know your real cost per part. Subsequently, when using a 3D printer it’s important to calculate the following variables:

  • Amortization of the printer
  • Filament used
  • Operator cost
  • Software programs, such as the BCN3D Cloud Teams
  • 3D printer power consumption

 On this occasion, we’re going to focus on the latter.

How much does it cost to print for 1 hour?

If we know the cost of energy for 1 hour, we can easily calculate how much each type of part consumes according to the printing time.

Let’s take for example the BCN3D Epsilon W50 printer, which has a maximum consumption of 840W per hour. Let’s also imagine that we are printing with both extruders and with PAHT CF15, a filament that needs to be melted at a higher temperature of 280°C, so we are consuming as many watts as possible. If we take into account that the average price per kWh in 2021 in Spain was 0.253 €, the maximum amount you’ll spend with an Epsilon W50 is 0.21 €/h.

Consumo impresora 3D

On the other hand, if we were to print in an off-peak hour (at €0.07 kWh), one hour of printing would cost us a maximum of €0.06 per hour. Keep in mind that these prices would be if the printer were consuming the maximum possible amount of energy. So the electrical cost for a normal print on an Epsilon W50 can be less than 0.03 € / h – very affordable!

How to calculate your 3D printer power consumption

We have just seen the maximum price you can pay for 1 hour of printing on an Epsilon W50…but let’s see what else affects the consumption of a 3D printer:

  • The printer model: There are other 3D printers that consume much more than those of BCN3D, reaching 1700W, so having a machine with low energy efficiency could double the electricity costs, at around 0.4 € per hour.

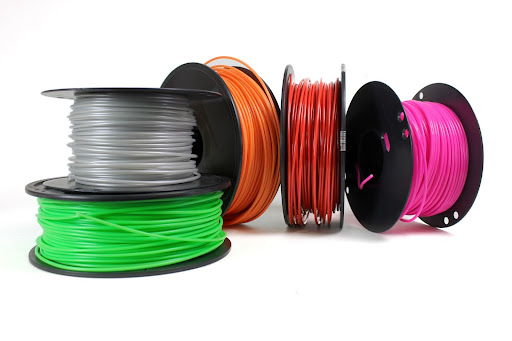

  • The filament: Each material needs to be melted at a different temperature, for example, PLA melts at 200°C and ABS at 240°C. Therefore, printing with PLA instead of ABS will reduce energy consumption.

Consumo impresora 3D filamentos

  • Print speed: While printing faster will significantly reduce the overall energy cost of the part, it will increase the consumption per hour, as the printheads will need more electricity in order to go faster.

How to reduce the consumption of the 3D printer?

By following the recommendations below, you could reduce the cost of energy per part by 80%, thanks to IDEX technology and the software implemented by BCN3D:

  1. Printing in Duplication/Mirror mode: Printing with two extruders at the same time not only reduces printing time by half, but also significantly reduces energy consumption by using the same printing surface, the same bar moving in the Y direction (the X-axis) and the same electronics.
  2. Printing with the recommended profiles: When you use our BCN3D Stratos slicer, you will see that each material has different configurations. These configurations have been studied and tested in our laboratory so that the figures come out perfectly, quickly and efficiently.

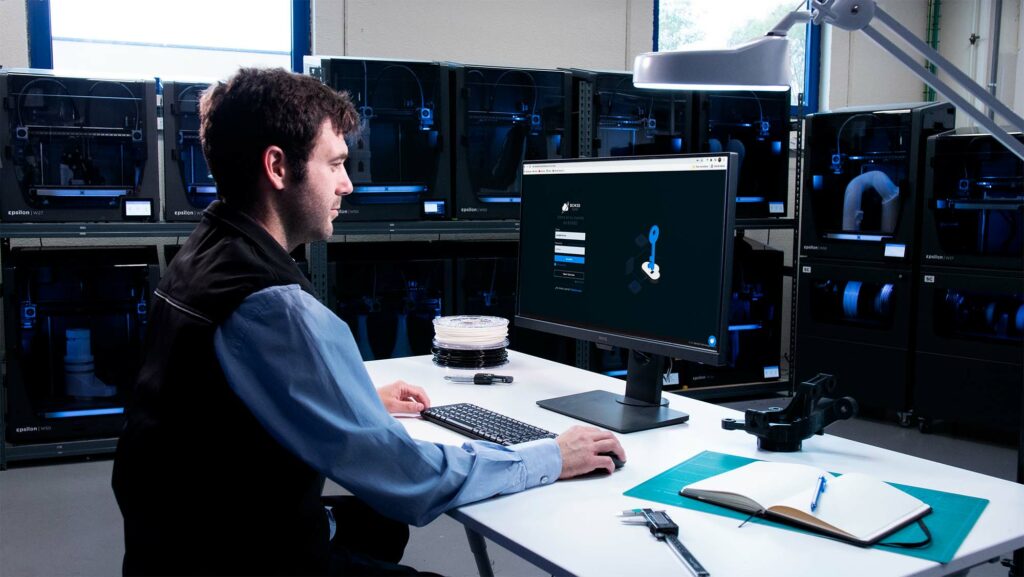

  3. Printing during “off-peak hours” (Spain only): If you only have to print one part and you don’t need it immediately, you can set the printing to start at an “off-peak hour” using the free BCN3D Cloud tool.

Consumo impresora 3D BCN3D Cloud

In conclusion, your 3D printer power consumption is a cost to be taken into account, but it’s not so high as to be an impediment to the use of this technology. In fact, the company TensaBelt uses “in-house” 3D printers instead of using other traditional methods for faster and more efficient prototyping. However, from BCN3D we try to further reduce these costs by using very efficient printers, with IDEX technology and the BCN3D Cloud.

Now that you know how to minimize these costs, it’s time to start printing! Learn more about the Epsilon W50, Smart Cabinet and the rest of our 3D printers on our website.
